- 1/2.3" CMOS Sensor with Hybrid Auto Focus
- High Quality 4K 30p and Full HD 60P Video Output
- 20x Optical Zoom Lens with Optical Image Stabilization
- Renowned Canon Colour Science
- 3G-SDI, HDMI, IP, and USB Video Out

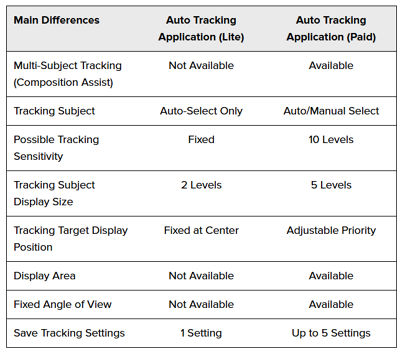

- Auto Tracking Lite Built-in
- Built-in NDI®HX2 and SRT (supports adaptive bitrate) support
- FreeD (wih multiple destination support) support for AR/VR system
- Supports PoE+, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
In the box
Returns Policy
The Canon store will accept, for return of exchange, defective or unopened merchandise purchased at the Canon Online Store within 30 days of the ship date.
See Return Policy for completed information.
Overview
The CR-N300 PTZ produces incredible 4K and HD image quality with the combination of a 1/2.3" CMOS sensor and the DIGIC DV 6 image processor. This camera incorporates a Canon 4K lens that exhibits a 20x optical zoom ratio that maintains a high level of precision throughout the zoom range. On-air pan and tilt movement is possible thanks to the smooth and responsive pan and tilt mechanism equipped with the CR-N300.
The CR-N300 camera supports multiple professional interfaces, including single cable PoE+ connectivity, which allows you to use NDI®|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as SRT, RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-N300 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.
Technical Specifications
Camera
Colour
Satin black/Titanium white
Image Sensor
Type 1/2.3 (1/2.3 in.) single-plate CMOS sensor
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)
Total pixels: approx. 21.14 megapixels
Effective pixels: approx. 8.29 megapixels (3840 x 2160)
Lens
f=3.67 - 73.4 mm, F1.8 - 2.8, 20x optical zoom, 8-bladed circular aperture
35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) - 601 mm (T)
[Full HD] approx. 30.5 (W) - 627 mm (T)
35mm equivalent focal length:
[4K UHD] approx. 29.3 (W) - 601 mm (T)
[Full HD] approx. 30.5 (W) - 627 mm (T)
Zoom
Digital: 20x
Optical: 20x
Optical: 20x
Lens Configuration
12 elements in 10 groups (including 2 aspheric elements)
Minimum Focusing Distance
1 cm (0.39 in.) at full wide angle, 60 cm (2.0 ft.) throughout the zoom range
Angle of View
[4K UHD]
Horizontal: 65.6 (W) - 3.6° (T)
Vertical: 39.8° (W) - 2.0° (T)
[Full HD]
Horizontal: 63.5 (W) - 3.4° (T)
Vertical: 38.4° (W) - 1.9° (T)
Horizontal: 65.6 (W) - 3.6° (T)
Vertical: 39.8° (W) - 2.0° (T)
[Full HD]
Horizontal: 63.5 (W) - 3.4° (T)
Vertical: 38.4° (W) - 1.9° (T)
Shutter Speed
1/6 - 1/2000 sec. (specific values depend on the frame frequency)
Iris
Manual/Automatic aperture
Gain
0.0 dB - 36 dB
White Balance
AUTO (AWB), Set A, Set B, preset settings (daylight: 5,600 K*, tungsten lamp: 3,200 K*),
colour temperature setting (2,000 K - 15,000 K), Manual
*Colour temperatures are given for reference purposes only.
colour temperature setting (2,000 K - 15,000 K), Manual
*Colour temperatures are given for reference purposes only.
Focus
Focus mode: Manual, Continuous AF, Face AF, Tracking
AF type: Hybrid AF, Contrast AF
AF type: Hybrid AF, Contrast AF
Gamma
Normal1 (Standard), Normal3 (BT.709)
Image Stabilizer
Optical-shift
Min. Subject Illumination
Approx. 1.5 lux (shutter speed 1/30 sec., frame frequency 59.94P (P (Programmed AE) shooting mode, auto slow shutter on))
Pan and Tilt
Pan operation range: Horizontal ±170°
Pan operation speed: 0.2° - 300°/sec.
Tilt operation range: Vertical -30° - +100°
Tilt operation speed: 0.2° - 170°/sec.
Pan operation speed: 0.2° - 300°/sec.
Tilt operation range: Vertical -30° - +100°
Tilt operation speed: 0.2° - 170°/sec.
Video Output Format
SDI
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
HDMI
3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
*Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
*When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.
IP
3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
*If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
*A frame rate that exceeds the frame frequency cannot be selected.
*JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720
When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
*If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
*A frame rate that exceeds the frame frequency cannot be selected.
*JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected) Resolution: 1280 x 720
When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps
USB
Motion JPEG:
1920 x 1080
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
1280 x 720
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
640 x 360
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
1920 x 1080
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
1280 x 720
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
640 x 360
59.94 Hz: 12.00 fps, 5.00 fps
50.00 Hz: 12.50 fps, 5.00 fps
Supported Video and Control Protocols
Protocol: XC Protocol, RTSP/RTP, NDI®|HX, RTMP/RTMPS, Standard (VISCA) Communication (Serial), Standard (VISCA) Communication (IP)
Number of Presets
Max. 100 (including home position)
Interface
Communication Control
LAN, Wi-Fi, Serial, IR
Network Terminal
LAN x 1, RJ45, 1000Base-T
3G-SDI OUT Terminal
BNC jack (output only) x 1, 0.8 Vp-p/75 Ω, unbalanced
SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant
Embedded audio, Time code (VITC/LTC)
SMPTE 424, SMPTE 425, SMPTE ST 299-2 compliant
Embedded audio, Time code (VITC/LTC)
HDMI OUT Terminal
HDMI connector x 1, output only
RS-422 Terminal
RJ45 connector x 1
Mic Terminal
ϕ3.5 mm stereo mini jack (unbalanced, plug-in power supported)
Sensitivity (MIC): -72 dBV (Manual volume centre, full scale -18 dB)/1 kΩ or
more/Att.: 20 dB
Sensitivity (LINE): -10 dBV (Manual volume centre, full scale -18 dB)/1 kΩ or more
Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
Sensitivity (MIC): -72 dBV (Manual volume centre, full scale -18 dB)/1 kΩ or
more/Att.: 20 dB
Sensitivity (LINE): -10 dBV (Manual volume centre, full scale -18 dB)/1 kΩ or more
Supply Voltage: 2.4 V DC (Bias resistance: 2.2 kΩ)
USB Terminal
Type-A (USB 2.0) x 1 (future expansion)
Type-C (USB 3.0) x 1
Type-C (USB 3.0) x 1
Media Slot
microSD card slot x 1 (future expansion, recording unavailable)
Other
Operating Environment
Temperature: 0°C - +40°C (+32°F - +104°F)
Humidity: 10% - 90% (without condensation)
Humidity: 10% - 90% (without condensation)
Storage Environment
Temperature
0°C - +40°C (+32°F - +104°F)
Humidity
10% - 90% (without condensation)
0°C - +40°C (+32°F - +104°F)
Humidity
10% - 90% (without condensation)
Power Supply
PoE: PoE+ power supply via LAN connector (IEEE802.3at compliant) - PoE cannot be used
External power source: 24 V DC (using included AC adaptor)
External power source: 24 V DC (using included AC adaptor)
Power Consumption
PoE+ Input: Approx. 16.2 W* max. (body only)
DC Input: Approx. 15.0 W max. (body only)
*Class 4 (25.5 W required) for power supply devices
DC Input: Approx. 15.0 W max. (body only)
*Class 4 (25.5 W required) for power supply devices
Dimensions (W x H x D)
Approx. 154 x 178 x 164 mm (6.06 x 7.01 x 6.46 in.) (excluding protrusions)
Weight
Approx. 2.2 kg (4.86 lb.) (body only)
Supported Controllers
Hardware: RC-IP100
Software: Remote Camera Control Application
Software: Remote Camera Control Application
