- 1" 4K UHD CMOS Sensor with Dual Pixel Autofocus with EOS iTR AF X
- High Quality 4K 60p Video Output
- 15x Optical Zoom Lens (30x FHD) with Optical Image Stabilization
- Built-in ND Filter
- Renowned Canon Colour Science with Support for Wide DR, Canon Log 3, HDR(HLG/PQ), EOS Standard/Neutral Image Modes
- 12G-SDI, 3G-SDI, HDMI, and IP Video Out
- Genlock, Dual XLR and 3.5mm Audio input
- Auto Tracking Lite Built-in
- Built-in NDI®HX2 and SRT (supports adaptive bitrate) support
- FreeD (with multiple destination support) support for AR/VR system
- Supports PoE++, variety of serial/IP control protocol support include Canon XC Protocol, Standard Control for Easy Integration into any Production Environment
Returns Policy
Overview
The CR-N700 4K PTZ camera is a professional 4K PTZ camera aimed at high-end Broadcast, TV Studios and Live Events. With outstanding 4K60P 4:2:2 10-bit HDR image quality, it offers broadcasters highly advantageous features such as Dual Pixel AF with ‘deep learning’ auto focus, 12G-SDI connectivity, multiple protocols for streaming and control as well as region of interest crop capabilities.
Features
4K detail for imaging excellence
A 1.0”-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.
Stunning optical precision
The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. When conditions are unstable, Canon’s renowned Optical Image Stabilization allows you to still capture steady footage.
Award-winning Autofocus technology
Fast, intelligent, and extremely accurate focusing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.
EOS iTR AF X
Deep learning autofocus technology locks on to a subject’s head, even if they turn away.
Eye Detection AF
Detects and tracks the subject’s pupil for precise focusing.
Face Priority/Face Only AF
Face Priority AF prioritizes the subject’s face, while Face Only AF responds when a face is detected.
Touch AF
Select your own focus point on screen with the Remote Camera Control Application.

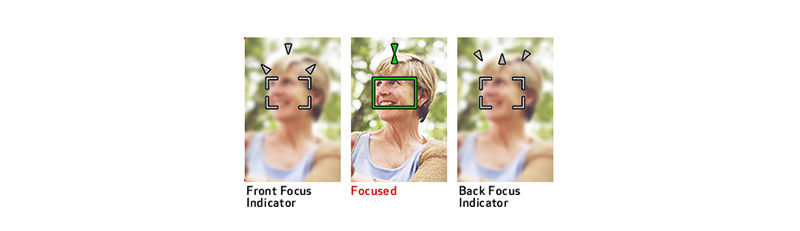

Dual Pixel Focus Guide
A visual representation showing when a subject is in focus.
Multiple protocols for seamless integration
The CR-N700 features SRT (supports adaptive bitrate) and NDI®HX21 protocols that help produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP and Canon XC protocol are also included, as well as FreeD (supports up to 4 destinations) for integration into virtual productions.
1 NDI is a trademark or registered trademark of NewTek, Inc. in the United States and other countries
Comprehensive connectivity
Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. The CR-N700 also includes 3G-SDI. Time Code and GEN-LOCK.
Powerful HDR imagery and low light capture
Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match other Canon cameras’ look.
Smooth and precise control
The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP1000 and RC-IP100 controllers and Remote Camera Control Application controllers, it can also be configured with selected third-party controllers.

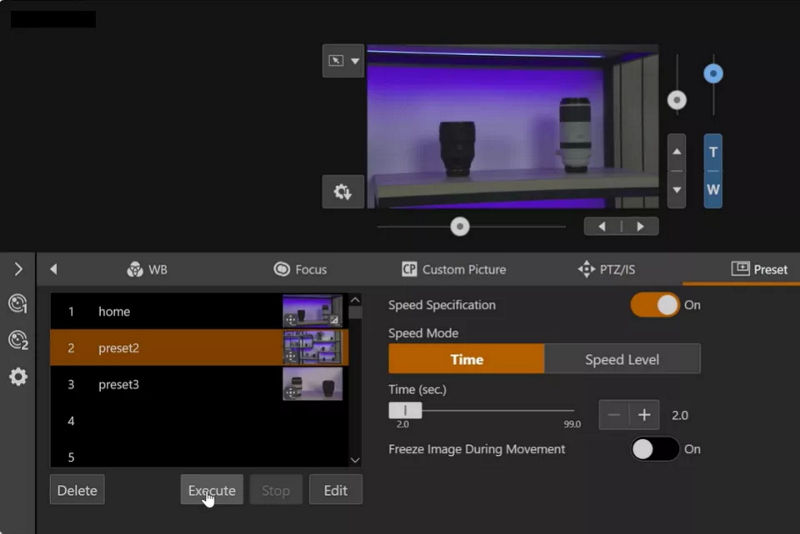

Thumbnail Display for Presets and Recorded Trace Movement
To make the cameras easier for operators and directors to instantly be able to see which shot they want to call up next, thumbnail images can be added for camera presets and for recorded trace movement in both the camera’s user interface and in the Remote Camera Control Application (RCCA)*.
*requires latest firmware version, available 11/28/23

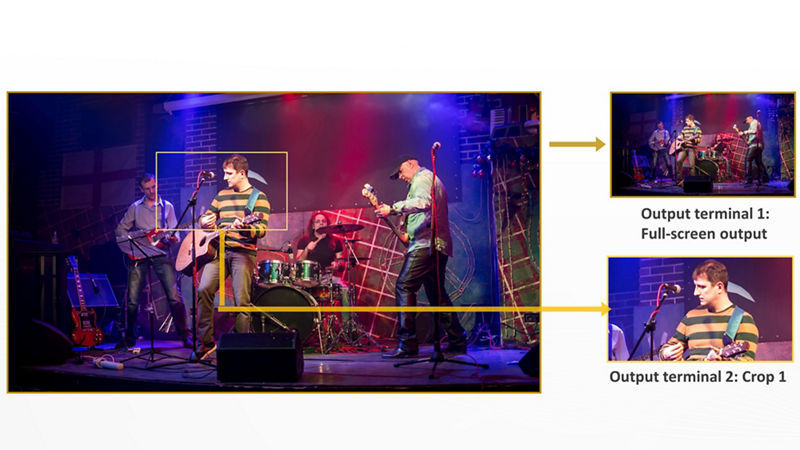

Crop function – single camera, two video feeds
Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.
Night Mode
Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.
July 2025 Firmware Update
The July 2025 firmware update will include the following improvements:
Cameras
-
SRT auto start and auto reconnect option, and easy start stop on viewer
-
RTMP auto reconnect option and easy start stop on viewer
-
CR-N100/300 only - PTZ control over IP in USB mode
-
Area Zoom function
-
CR-N700 only- Seamless switch from 60 to 30 / 24 fps
-
Auto firmware update
-
Revert individual WB/Color/Image settings to factory default
-
Improved Presets
-
Preset execution time setting added
-
Increased thumbnail Size
-
Other Improvements
-
CR-N700 only
-
One shot AF added
-
Improved preset and CP file setting structure
-
-
All Cameras
-
Reduce video preview bandwidth options
-
Backup / restore added preset only (all) and custom picture (N700)
-
Only Digital zoom maximum limit can now be set
-
Video preview added to pan tilt limit page
-
Power light can be turned off
-
Added 2 second I-frame interval option for streaming video
-
-
Under the Hood
-
NDI SDK v6 support
-
Smooth angle movement with slow deceleration xc command
-
Enhanced security measures / logging
-
Auto Tracking (indoor models only)
-
Performance improvement
-
Paid Version
-
Multiple person tracking
-
Face orientation composition assist
-
Seated / standing detection support
-
RC-IP1000
-
Support for new firmware updates on cameras
-
Added support for EOS C80
-
Support for auto-tracking updates and additional auto-tracking controls
-
Support new auto tracking features
-
Start / stop auto tracking application
-
Auto start on/off control
-
-
Improved preset registration and display
-
New 3x3 preset layout
-
Supports long press preset registration on LCD screen
-
-
Release Date - Late August 2025
Other Additions
-
Video preview reception on/off
-
Assign external video output to user button
-
Resolved Issue with Stream Deck
-
Support for cameras with same IP (different ports) in same camera group
-
Support for receiving XC communication without ID / password authentication
-
Improved “Linked Control’ external device status
Multi-Camera Control App
-
Added support for all IP PTZ cameras (CR-N100, N300, N500, N700, X300)
