The CR-X300 features a 1 / 2.3-inch 4k-UHD CMOS imaging sensor and an optical 20x zoom lens, along with the a 20x digital zoom, all supported by Canon's highly advanced autofocus technology. The CR-X300 achieves astounding performance that enables this PTZ camera to be used in high-end production applications, including broadcast, sports, live events, and government. Housed in an aluminum die-cast body, it also features an IP65 rating for protection from dust and water, can be mounted right-side-up or upside down, yet it is small and lightweight enough to be carried around for portable installations Virtually anywhere.

The CR-X300 camera supports multiple professional interfaces, including single cable PoE++ connectivity, which allows you to use NDI®|HX2 to stream audio and video, control (IP), tally, and power over a single cable. The camera supports other protocols, such as SRT (Supports Adaptive Bitrate), FreeD (Supports up to 4 destinations), RTSP/RTP, as well as RTMP/RTMPS, to stream to social sites such as Facebook Live and YouTube. Even better, the CR-X300 can be controlled remotely by IP, Serial, IR or wirelessly via Wi-fi. The camera supports multiple control standards, including Canon's XC protocol as well as Standard Protocol (serial and IP) for easy connectivity to a wide range of 3rd party hardware controllers.

High Quality 4K 30P and Full HD 60P Video Output

Advanced 4K UHD CMOS Image Sensor

The CR-N300 features a Canon 1/2.3-inch 4K UHD CMOS image sensor capable of 4K UHD video capture at 30p up to 60fps in Full HD, making the PTZ camera a strong contender for professional production.

DIGIC DV 6 Image Processor

Get improved picture quality for both 4K UHD video and Full HD with the Over-Sampled HD Processing, along with Canon’s superb autofocus logic.

4K 29.97P and 1080p 59.94P 4:2:2 10-bit Output

6D-SDI and HDMI terminals allow for output that supports integration into professional workflows, making it particularly useful for broadcast applications. The 6G-SDI and HDMI outputs provide an uncompressed signal at 3840 x 2160 or 1920 x 1080 resolution with 4:2:2 color sampling and 10-bit color depth, perfect for demanding television broadcast applications.

Hybrid AF

The CR-X300 is equipped with "Hybrid AF". Hybrid AF is an auto focus system that combines high-precision contrast AF technology and the high-speed phase-difference AF technology to confirm auto focus from the camera. This hybrid auto focus system achieves auto focus faster and more reliably compared to contrast auto focus alone. Furthermore, the CR-X300 features Face Detection and Tracking functions which detects faces and automatically adjusts focus when a human is detected within the frame.

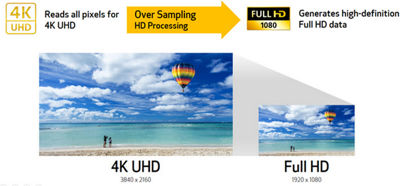

Advanced Full HD Image Quality

Our Full HD image quality from our CR-X300 is now even better thanks to Over Sampling HD Processing, which enables Full HD by effectively utilizing the outstanding capabilities of the 4K UHD CMOS Sensor.

The CR-X300 features Scene Modes that offer four preset shooting modes suitable for the desired application.

There are four types of Scene Modes: Portrait mode, which exhibits a blurred background while subject is in sharp focus, Sports mode, which enhances capture of moving objects, Low Light mode, which enhances capture of bright images even in dark places, and Spotlight mode, which enhances capture of beautiful images of spotlighted objects.

By selecting a Scene Mode, capture can be performed without having to adjust multiple settings within the Camera menu which aids a speedy setup and configuration allowing the operator to start shooting with impressive image expression.

IR Mode

The CR-X300 features an Infrared Mode allowing the capture of video in conditions with little to no ambient light. This feature allows low-light capture by removing the infrared cutoff filter from the optical path. The camera’s specially designed lens coating allows the infrared light to pass through to the image sensor.

Genuine Canon 4K UHD Lens

20x Zoom Range

The CR-X300 features a genuine Canon 20x 4K Optical Zoom Lens that provides a highly versatile zoom range with a 35mm equivalent of 29.3 - 601mm to help capture subjects at a variety of distances. Furthermore, the CR-X300 exhibits a 65.6° angle of view when video output is set to 4K UHD and a 63.5° angle of view when video output is set to full HD. This allows operators to capture wider angles of view, which could potentially reduce the amount of cameras needed for a production – reducing overall costs of the project.

20x Digital Zoom

When combined with a digital 20x zoom, the camera can achieve super-telephoto shooting with a maximum 400x zoom (Optical 20x + Digital 20x).

Image Stabilization Options with Two Types of IS Modes

In addition to the Standard optical IS mode, CR-X300 is also equipped with the Powered IS mode that compensates for blurring during telephoto shooting.

ND Filters

Internal optical ND filtration up to 1/8 allows for remote exposure control. In addition, an included 1/32 external enhanced ND can be manually activated for more demanding applications.

Smooth & Responsive Pan and Tilt Performance

 3-axis Simultaneous PTZ Movement

The CR-X300 is an exceptional PTZ camera which combines smooth, fast, and highly precise movement. In Normal Mode, operational movement has a noise rating of NC45 or lower, making it extremely suitable for quiet indoor environments. Up to 100 Camera Presets are possible, allowing for incredible creative flexibility for all productions, whether large or small venues.

+/- 180° Pan and -40° to +215° Tilt Operation

The CR-X300 is equipped with a Pan & Tilt drive mechanism supporting a range of ±180° Pan, -40° to +215° Tilt, allowing for outstanding movement flexibility, whether mounted in a standard manner, or inverted.

Furthermore, the CR-X300 exhibits a variable Pan and Tilt speed of 0.3° - 60°/second, for situations ranging from the delicate movements of an outdoor worship service to high-paced sports events.

Upright/Inverted Mounting

The CR-X300 can be mounted upright or inverted (ceiling mount). In either position, the picture image will automatically flip when the tilt angle reaches 90°.

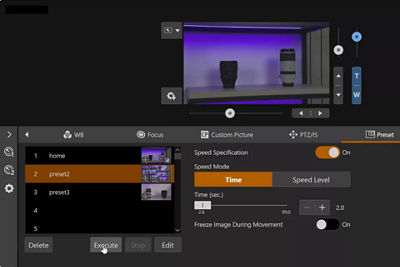

Thumbnail Display for Presets and Recorded Trace Movement

To make the cameras easier for operators and directors to instantly be able to see which shot they want to call up next, thumbnail images can be added for camera presets and for recorded trace movement in both the camera’s user interface and in the Remote Camera Control Application (RCCA)*.

*requires latest firmware version, available 11/28/23

Various Interfaces Supported for Multiple Environments

6G-SDI and HDMI Outputs

The CR-X300 features industry-standard 6G-SDI and HDMI video outputs for easy integration into professional video environments. With these interfaces, the user can achieve of output of up to 4K UHD at 29.97p or Full HD at up to 59.94p. Furthermore, the CR-X300 is equipped with a built-in weatherproof microphone that can be utilized to capture audio.

PoE++ Single Cable Solution

PoE++ (802.3bt compliant) support allows for an easy, single cable solution. More specifically, this allows for quicker, and potentially lower-cost installations, with one cable providing any combination of power, control, and video feed over a standard IP connection.

LAN and Serial Control

The CR-X300 can be controlled by a variety of methods, including serial-based controllers, or by IP-based controllers. These controllers can be hardware or software based offering tremendous flexibility to fit into a variety of production workflows.

Easy Integration Into IP Streaming

IP System

The CR-X300 is equipped with an RJ-45 interface purposed for IP communication, which supports high-resolution videos for distribution. The CR-X300 supports multiple protocols that can be utilized for video, audio and control. The CR-X300 can also be combined with third-party equipment for control purposes.* This IP system can contribute to an efficient and labor-saving camera operations for the field of video production, broadcasting and more.

*Connection with all devices is not guaranteed. Canon makes no representations or warranties with respect to any third-party product or accessory.

IP Multi-Stream Support

The CR-X300 can simultaneously distribute video to multiple protocols via IP. Simultaneous distribution is also known as multi-stream, and the CR-X300 can distribute a total of three video streams simultaneously.

RTMP Streaming Protocol Supported

The CR-X300 is capable of streaming video and audio using RTMP (Real-Time Messaging Protocol) for live streaming to such popular distribution platforms such as Facebook Live, YouTube, Twitch, and others. RTMP is known for delivering advantages including low latency, reduced buffering, and adaptive bitrate streaming, all of which are handled by the advanced networking chipset built into the CR-X300.

NDI®HX2 Live Video Production Support Protocol

The CR-X300 supports the NDI®HX2 (Network Device Interface) protocol that is well-established in the field of video production and broadcasting as the supporting RTP (Real-time Transport Protocol). The NDI® protocol has been developed and led by NewTek, Inc. as a protocol that supports the workflow of live video production over an IP network. NDI offers users a simple, low latency network solution for plug-n-play connectivity for PTZ cameras, controllers, and even system monitors. The CR-X300 blends seamlessly into existing NDI networks for easy integration into many environments including live events, sports arenas, outdoor venues and more.

Standard Protocol

The CR-X300 supports the Standard Protocol as a protocol to remotely control the camera via IP. When connecting a Standard Protocol compatible remote controller to the camera over IP or serial (RS-422) the camera can be operated remotely and shooting settings can be adjusted by utilizing the remote controller.

The Standard Protocol is widely used in video production, broadcasting and many other markets. The CR-X300 supports the standard protocol that is regarded as an industry standard and is suitable for operation within existing workflows.

Support for Canon XC protocol

The XC Protocol is an IP protocol that controls Canon video production equipment, including the Cinema EOS models such as the C300 Mk III and C500 Mk II, as well as a number of PTZ camera models. By supporting, the XC Protocol the CR-X300 can be remotely controlled supporting a wide range of applications, which includes sports, music, live events, lecture recording, corporate video production, and more. The XC Protocol is provided free of charge and can be found at https://developercommunity.usa.canon.com

Outdoor Features

IP65 Rating

With a waterproof and dustproof design featuring an IP65 enclosure rating, the CR-X300 can be installed in challenging locations and is not affected by environmental conditions.

Built-in Wiper

The model is also equipped with an enhanced servo 1/32 ND filter and wiper unit, each of which aid in the CR-X300 delivering dependable video in challenging environmental conditions. Additionally, the CR-X300 is equipped with a fan for heat dissipation, which helps to ensure the camera continues operation without issue.

Durable Aluminum Body

A durable die-cast aluminum body provides a resilient platform for professional video delivery in challenging outdoor environments. The body is further protected by a weather resistant paint in titanium white.

Versatile Integration

BT.709 and BT.2020 Color Spaces

The CR-X300 features the Image Quality Adjustment function (Custom Picture) for high-end video production. This versatile Custom Picture menu for the CR-X300 is similar to Canon’s XF705, XF605 and Cinema EOS System, which allows users to adjust the picture settings to adapt to the shooting conditions or add effects according to the intention of direction. This function makes it possible for content creators to set the gamma, gamut and color matrix to match the image capture of other cameras in a production.

Genlock

The CR-X300 is equipped with Genlock to allow for sync with other systems in multi-camera environments.

Multiple Control Protocols

The CR-X300 can be controlled via a large variety of protocols, including XC (Canon's original), NU (Canon's original), RTSP/RTP, NDI®HX2, RTMP/RTMPS, Standard Communication over serial, and Standard Communication over IP.

Hardware or Software Remote Camera Control

Because the CR-X300 supports a large variety of protocols, the operator has an assortment of controller choices, including both hardware and software-based solutions. Canon’s optional RC-IP100 hardware control panel is capable of controlling up to 100 cameras and 100 presets per camera with a combination of touch screen and physical controls. The RC-IP1000 controller can control up to 200 cameras.

For software-based environments, Canon’s Remote Camera Control Application can be utilized to control the CR-X300. The Remote Camera Control Application is designed for Windows 10 for centralized control of up to nine cameras at the same time - achieving a "multi-camera operation". The software is included with the camera and can be installed immediately without having to prepare a hardware controller in advance, making it easy to use for the operator while creating an effective one-person operation.

Easy-to-use Settings Page and Search Tool

The CR-X300 supports the camera search tool, which is a Windows application. The Camera Search Tool is utilized to set the IP addresses of multiple cameras, which helps installers and integrators setup the CR-X300 within an existing network infrastructure. Furthermore, the CR-X300 supports the web application “Settings Page“. The Settings Page allows the user to configure the settings of camera operation, which is accessible by web browser. Video quality adjustments such as exposure and white balance that are usually performed by the camera operator on site can now be adjusted and set while watching the video from their desk through the Settings Page. Both Camera Search Tool and Settings Page enhances the ease of use by remote control.

Backed by a three-year warranty

The CR-X300 offers peace of mind being backed by Canon’s three-year warranty which guarantees each unit will be free of defects in workmanship and materials for up to three years from the date of original purchase.

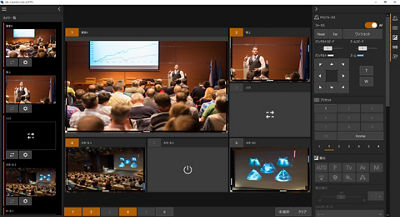

Remote Camera Control Application

The Remote Camera Control Application is an application for centralized control of multiple cameras. It is possible to operate up to nine cameras and display videos at the same time - achieving a "multi-camera operation".

At a video production or broadcasting site, an operator can select a camera from the videos displayed on the "Connected Camera List", within the application and operate it from the "Camera Control Area" in the control panel of the software. The software is included and can be installed immediately without having to prepare a hardware controller in advance making it easy to use for the operator while creating an effective one-person operation.

Add-On Applications

The Add-On Application System will enable the installation of paid applications directly onto the camera. These applications can then be run without the need for a computer, simplifying operations and set-up.

The Auto Loop Application empowers the camera to automatically repeat pan/tilt/zoom (PTZ) staging movements ordinarily performed by camera operators during the broadcast of events, as well as in the production of TV commercials and movies. What’s more, “fade mode” adjusts the acceleration and deceleration of the camera motions as the motions begin and end, enabling the automated camera system to mimic professional camerawork.

Cameras

• SRT auto start and auto reconnect option, and easy start stop on viewer

• RTMP auto reconnect option and easy start stop on viewer

• CR-N100/300 only - PTZ control over IP in USB mode

• Area Zoom function

• CR-N700 only- Seamless switch from 60 to 30 / 24 fps

• Auto firmware update

• Revert individual WB/Color/Image settings to factory default

• Improved Presets

  • Preset execution time setting added

  • Increased thumbnail Size

Other Improvements

• CR-N700 only

  • One shot AF added

  • Improved preset and CP file setting structure

• All Cameras

  • Reduce video preview bandwidth options

  • Backup / restore added preset only (all) and custom picture (N700)

  • Only Digital zoom maximum limit can now be set

  • Video preview added to pan tilt limit page

  • Power light can be turned off

  • Added 2 second I-frame interval option for streaming video

• Under the Hood

  • NDI SDK v6 support

  • Smooth angle movement with slow deceleration xc command

  • Enhanced security measures / logging

Auto Tracking (indoor models only)

• Performance improvement

• Paid Version

  • Multiple person tracking

  • Face orientation composition assist

  • Seated / standing detection support

RC-IP1000

• Support for new firmware updates on cameras

• Added support for EOS C80

• Support for auto-tracking updates and additional auto-tracking controls

  • Support new auto tracking features

  • Start / stop auto tracking application

  • Auto start on/off control

• Improved preset registration and display

  • New 3x3 preset layout

  • Supports long press preset registration on LCD screen

• Release Date - Late August 2025

Other Additions

• Video preview reception on/off

• Assign external video output to user button

• Resolved Issue with Stream Deck

• Support for cameras with same IP (different ports) in same camera group

• Support for receiving XC communication without ID / password authentication

• Improved “Linked Control’ external device status

Multi-Camera Control App

• Added support for all IP PTZ cameras (CR-N100, N300, N500, N700, X300)
