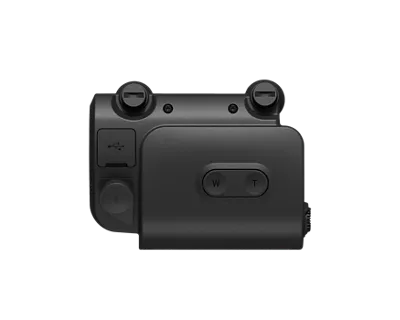

Power Zoom Adapter PZ-E2B
- Enables sophisticated zoom control for the RF24-105mm F2.8 L IS USM Z lens
- DC motor that can be finely adjusted via dial provides both rapid zoom action and smooth, low-speed zooming
- Supports various shooting styles and conditions via manual or remote operation
- Can be easily attached or detached while the lens is combined with a rig, gimbal, or tripod without the use of a special tool*
- Thumb rest included to enhance handheld shooting experience
- Supports the PD-E1 power adapter (sold separately) to supply power via USB-C port
- Equipped with 20-pin port for compatibility with Canon zoom servo grip, zoom demand, focus demand, and other accessories for movie shooting
In the box
Returns Policy
Overview
The Power Zoom Adapter PZ-E2B enables sophisticated zoom control for the RF24-105mm F2.8 L IS USM Z lens and provides a variety of controllable functions to meet the needs of videographers. The zoom speed of the DC motor can be finely adjusted in a stepless manner via a dial to provide both rapid zoom action and smooth, low-speed zooming. It is also equipped with a 20-pin port making it compatible with Canon cinema and broadcast lens accessories. The Power Zoom Adapter attaches directly to the RF24-105mm F2.8 L IS USM Z lens, and draws power from the camera, through contacts on the lens — no batteries are in the PZ-E2B unit.
Sophisticated Zoom Control:
Power Zoom Adapter PZ-E2B enables smooth, high-precision zoom control during movie shooting. Featuring a DC motor that provides both rapid zoom action and smooth, low-speed zooming, the PZ-E2B allows for unassisted single-person video shooting operation.
Zoom Speed Adjustment Dial:
Easily control zoom speed via a stepless adjustment dial located at the front of the Power Zoom Adapter. Zoom speed can be finely tuned for precision and operability that satisfies the needs of videographers.
Excellent Operability:
Easily attach and detach the Power Zoom Adapter PZ-2EB without the use of a special tool*. Simply line up the positioning pins with the sockets on the RF24-105mm F2.8 L IS USM Z lens and turn the mounting screws to fasten the adapter. The placement was designed so it can be attached or detached even while the lens is combined with a rig, gimbal, or tripod so you can keep your production rolling. A thumb rest attachment is also included for additional hand-held comfort.
Supports Various Shooting Styles:
The Power Zoom Adapter PZ-E2B can be used in various ways depending on the videographer’s shooting style or system configuration. Manual operation of zooming is achieved using the switches on the main unit, camera-side operation is possible via assigning custom buttons**, or remote operation via Canon EOS Utility software or Camera Connect app.
Supports PD-E1 Power Adapter:
The PD-E1 Power Adapter (sold separately) enables high-speed zoom mode on the Power Zoom Adapter PZ-E2B via the USB type C port, with select EOS camera models. It also lowers the power supply demand on the camera, allowing for longer shoots.
- Zoom Servo Grip ZSG-C10
- LZoom Demand ZSD-300D/380D
- Focus Demand FPD-400D
